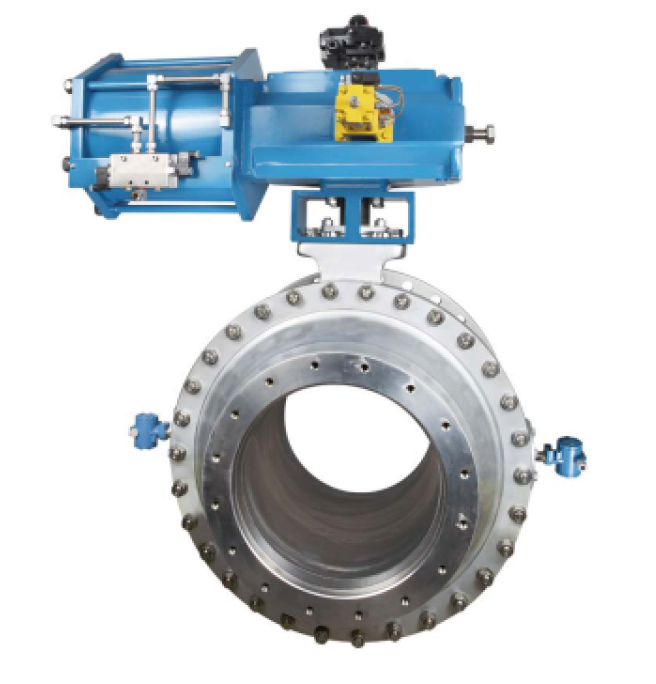

Capping Valve

Description

Features:

Floating ball design

Self -sealing by pressure

High temperature resistance

Interlocking system protection

Applications: Capping valve is especially designed for feeding control of wood chips in the digester.

Technical Specification:

DN: DN400 ~ DN800

PN: PN16 ,PN25, ANSI150LB 300LB

Connection: Flanged

Temperature °C : -29~280

Sealing : Metal Seat

Tightness Class : V

Body Material : (1)WCB (2)CF8 (3)CF8M (4)CF3M
